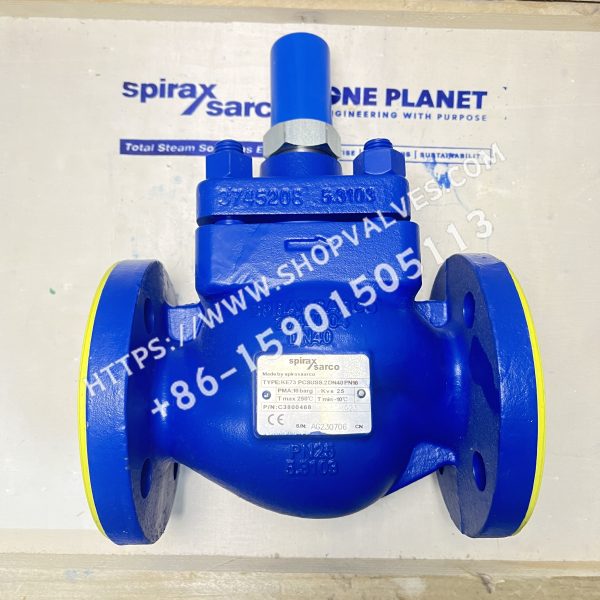

斯派莎克 Spirax Sarco DN40 KE73 Kvs 25 PN16 正面

描述

斯派莎克 Spirax Sarco Spira-trolTM DN15-DN100 KE73, PN16二通控制阀是鼠笼压紧阀座的二通单座阀，符合EN标准，口径范围从DN15-DN100，与气动或电动线性执行器一起使用时，可实现特性调节或开/关控制。

可供型号

型号SKU
DN15 KE43 Kvs 4.0 PN4013740156
DN20 KE43 Kvs 6.3 PN4013741156
DN25 KE43 Kvs 10 PN4013742156
DN32 KE43 Kvs 16 PN4013743156
DN40 KE43 Kvs 25 PN4013744156
DN50 KE43 Kvs 36 PN4013745156
DN65 KE43 Kvs 63 PN4013746156
DN80 KE43 Kvs 100 PN4013747156
DN100 KE43 Kvs 160 PN4013748156
DN125 KE43 PTSBSS.2 Kv245 PN4013780759
DN15 KE73 Kvs 4.0 PN253740056
DN20 KE73 Kvs 6.3 PN253741056
DN25 KE73 Kvs 10 PN253742056
DN32 KE73 Kvs 16 PN253743056
DN40 KE73 Kvs 25 PN253744056
DN50 KE73 Kvs 36 PN253745056
DN65 KE73 Kvs 63 PN253746056
DN80 KE73 Kvs 100 PN253747056
DN100 KE73 Kvs 160 PN253748056
DN125 KE73 PTSBSS.2 Kv245 PN253780754
1/2” KE71 Kvs 4.0 BSP3740052
3/4” KE71 Kvs 6.3 BSP3741052
1” KE71 Kvs 10 BSP3742052
1 1/4” KE71 Kvs 16 BSP3743052
1 1/2” KE71 Kvs 25 BSP3744052
2” KE71 Kvs 36 BSP3745052
DN15 KE73 Kvs 4.0 PN163740067
DN20 KE73 Kvs 6.3 PN163741067
DN25 KE73 Kvs 10 PN163742064
DN32 KE73 Kvs 16 PN163743064
DN40 KE73 Kvs 25 PN163744064
DN50 KE73 Kvs 36 PN163745064
DN65 KE73 Kvs 63 PN163746052
DN80 KE73 Kvs 100 PN163747065
DN100 KE73 Kvs 160 PN163748052
KE73 PCSUSS.2 DN15 PN16 Kv413800068
KE73 PCSUSS.2 DN20 PN16 Kv6.313800168
KE73 PCSUSS.2 DN25 PN16 Kv1013800268
KE73 PCSUSS.2 DN32 PN16 Kv1613800368
KE73 PCSUSS.2 DN40 PN16 Kv2513800468
KE73 PCSUSS.2 DN50 PN16 Kv3613800568
KE73 PCSUSS.2 DN65 PN16 Kv6313800650
KE73 PCSUSS.2 DN80 PN16 Kv10013800768
KE73 PCSUSS.2 DN100 PN16 Kv16013800850
1/2” KE71 BSP + PN9126E + SP7 Pro + FR20A3740052+13579092+3440501+3440594+3440001+3440002*2+54000001
DN15 KE73 PN16 + PN9126E + SP7 Pro + FR20A3740067+13579092+3440501+3440594+3440001+3440002*2+54000001
DN20 KE73 PN16 + PN9126E + SP7 Pro + FR20A3741067+13579092+3440501+3440594+3440001+3440002*2+54000001
DN25 KE73 PN16 + PN9126E + SP7 Pro + FR20A3742064+13579092+3440501+3440594+3440001+3440002*2+54000001
DN25 KE73 PN16 + PN9123E + SP7 Pro + FR20A3742064+13579093+3440501+3440594+3440001+3440002*2+54000001
DN32 KE73 PN16 + PN9123E + SP7 Pro + FR20A3743064+13579093+3440501+3440594+3440001+3440002*2+54000001
DN40 KE73 PN16 + PN9123E + SP7 Pro + FR20A3744064+13579093+3440501+3440594+3440001+3440002*2+54000001
DN50 KE73 PN16 + PN9226E + SP7 Pro + FR20A3745064+13579192+3440501+3440594+3440001+3440002*2+54000001
DN65 KE73 PN16 + PN9233E + SP7 Pro + FR20A3746052+13441193+3440501+3440594+3440001+3440002*2+54000001
DN80 KE73 PN16 + PN9233E + SP7 Pro + FR20A3747065+13441193+3440501+3440594+3440001+3440002*2+54000001
DN100 KE73 PN16 + PN9233E + SP7 Pro + FR20A3748052+13441193+3440501+3440594+3440001+3440002*2+54000001
DN100 KE73 PN16 + PN9337E + SP7 Pro + FR20A3748052+13579394+3440501+3440594+3440001+3440002*2+54000001
DN15 KE73 PN25 + PN9126E + SP7 Pro + FR20A3740056+13579092+3440501+3440594+3440001+3440002*2+54000001
DN20 KE73 PN25 + PN9126E + SP7 Pro + FR20A3741056+13579092+3440501+3440594+3440001+3440002*2+54000001
DN20 KE73 PN25 + PN9123E + SP7 Pro + FR20A3741056+13579093+3440501+3440594+3440001+3440002*2+54000001
DN25 KE73 PN25 + PN9123E + SP7 Pro + FR20A3742056+13579093+3440501+3440594+3440001+3440002*2+54000001
DN32 KE73 PN25 + PN9123E + SP7 Pro + FR20A3743056+13579093+3440501+3440594+3440001+3440002*2+54000001
DN40 KE73 PN25 + PN9226E + SP7 Pro + FR20A3744056+13579192+3440501+3440594+3440001+3440002*2+54000001
DN50 KE73 PN25 + PN9226E + SP7 Pro + FR20A3745056+13579192+3440501+3440594+3440001+3440002*2+54000001
DN65 KE73 PN25 + PN9233E + SP7 Pro + FR20A3746056+13441193+3440501+3440594+3440001+3440002*2+54000001
DN80 KE73 PN25 + PN9337E + SP7 Pro + FR20A3747056+13579394+3440501+3440594+3440001+3440002*2+54000001
DN125 KE73 PN25 PTSBSS.2 + TN2277SE + SP7 Pro + FR20A3780754+3270050+3440501+3440594+3440001+3440002*2+54000001
DN15 KE73 PEEK PN16 + PN9126E + SP7 Pro+FR20A13800068+13579092+3440501+3440594+3440001+3440002*2+54000001
DN20 KE73 PEEK PN16 + PN9126E +SP7 Pro+FR20A13800168+13579092+3440501+3440594+3440001+3440002*2+54000001
DN25 KE73 PEEK PN16 + PN9126E + SP7 Pro+FR20A13800268+13579092+3440501+3440594+3440001+3440002*2+54000001
DN25 KE73 PEEK PN16 + PN9123E + SP7 Pro+FR20A13800268+13579093+3440501+3440594+3440001+3440002*2+54000001
DN32 KE73 PEEK PN16 + PN9123E + SP7 Pro+FR20A13800368+13579093+3440501+3440594+3440001+3440002*2+54000001
DN40 KE73 PEEK PN16 + PN9123E + SP7 Pro+FR20A13800468+13579093+3440501+3440594+3440001+3440002*2+54000001
DN50 KE73 PEEK PN16 + PN9226E + SP7 Pro+FR20A13800568+13579192+3440501+3440594+3440001+3440002*2+54000001
DN65 KE73 PEEK PN16 + PN9233E + SP7 Pro+FR20A13800650+13441193+3440501+3440594+3440001+3440002*2+54000001
DN80 KE73 PEEK PN16 + PN9233E + SP7 Pro+FR20A13800768+13441193+3440501+3440594+3440001+3440002*2+54000001
DN100 KE73 PEEK PN16 + PN9233E + SP7 Pro+FR20A13800850+13441193+3440501+3440594+3440001+3440002*2+54000001
DN100 KE73 PEEK PN16 + PN9337E + SP7 Pro+FR20A13800850+13579394+3440501+3440594+3440001+3440002*2+54000001
DN15 KE73 PEEK PN25 + PN9126E + SP7 Pro+FR20A13800056+13579092+3440501+3440594+3440001+3440002*2+54000001
DN20 KE73 PEEK PN25 + PN9126E + SP7 Pro+FR20A13800156+13579092+3440501+3440594+3440001+3440002*2+54000001
DN20 KE73 PEEK PN25 + PN9123E + SP7 Pro+FR20A13800156+13579093+3440501+3440594+3440001+3440002*2+54000001
DN25 KE73 PEEK PN25 + PN9123E + SP7 Pro+FR20A13800256+13579093+3440501+3440594+3440001+3440002*2+54000001
DN32 KE73 PEEK PN25 + PN9123E + SP7 Pro+FR20A13800356+13579093+3440501+3440594+3440001+3440002*2+54000001
DN40 KE73 PEEK PN25 + PN9226E + SP7 Pro+FR20A13800456+13579192+3440501+3440594+3440001+3440002*2+54000001
DN50 KE73 PEEK PN25 + PN9226E + SP7 Pro+FR20A13800556+13579192+3440501+3440594+3440001+3440002*2+54000001
DN65 KE73 PEEK PN25 + PN9233E + SP7 Pro+FR20A13800656+13441193+3440501+3440594+3440001+3440002*2+54000001
DN80 KE73 PEEK PN25 + PN9337E + SP7 Pro+FR20A13800756+13579394+3440501+3440594+3440001+3440002*2+54000001
DN100 KE73 PEEK PN25 + PN9337E + SP7 Pro+FR20A13800856+13579394+3440501+3440594+3440001+3440002*2+54000001

配套执行器和定位器

电动执行器EL4600和EL5600系列
气动执行器PN1000和PN9000系列
定位器PP5(气动定位器)或EP5(电气定位器)
定位器ISP5(本安型电气定位器)
定位器SP400和SP500(智能型电气定位器)
定位器SP300(带数字通讯功能)

口径和管道连接

型号阀体材料连接口径范围
KE73球墨铸铁法兰PN16DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80和DN100

压力/温度限制

阀体设计条件KE73 PN16
最大设计压力16 bar g @ 120°C
最大设计温度300°C
最小设计温度-10°C
最大操作温度-V型PTFE标准填料250°C
最大操作温度-PTFE软阀座(G)200°C
最大操作温度-高温填料(H)300°C
最大操作温度-带V型PTFE的加长阀帽(E)250°C
最大操作温度-带石墨填料的加长阀帽(E)300°C
最大操作温度-波纹管(B)300°C
最小操作温度-10°C
最大压差见相关执行器的TIS
最大冷态测试水压 : 警告:波纹管密封的阀门在进行水压试验时需将波纹管取下。24 bar g

阀门重量

阀门口径KE73重量(kg)波纹管密封或加长阀帽的附加重量(kg)
DN155.54.5
DN206.84.5
DN257.04.5
DN3213.55.5
DN4014.05.5
DN5017.05.5
DN6535.010.0
DN8040.010.0
DN10054.013.0

气动执行器重量

执行器型号重量(kg)带手轮重量(kg)
PN1500和PN250055-
PN1600和PN260070-
PN9100E系列6+5.86
PN9100R系列6+2.50
PN9200E系列17+7.20
PN9200R系列17+3.77
PN9320E系列27+7.20
PN9320R系列27+3.77
PN9330E系列27+7.20
PN9330R系列27+3.77

电动执行器重量

执行器型号重量(kg)
EL560_4.5
EL561_4.8
EL562_5.2
EL563_7.0
EL564_10.0
EL565_20.0
EL506_8.7
