Description

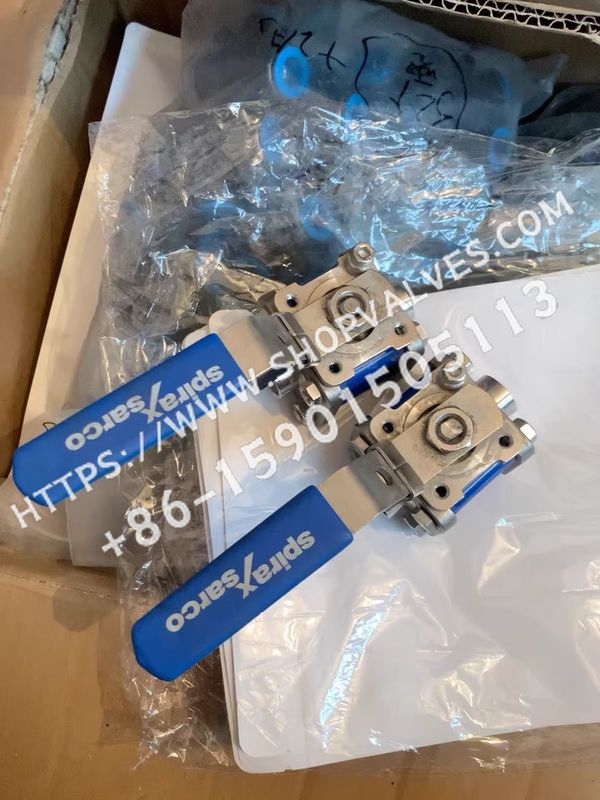

Spirax Sarco M16Vi and M16Si ball valves are designed for isolation shut-off in steam and other industrial fluid applications. They are supplied with a lockable handle as standard and can be serviced directly without completely removing the valve from the pipeline. The valves support manual or remote control and feature an integrated ISO mounting platform for easy actuator installation without compromising seal integrity. Available models include M16Vi4 (ISO stainless steel ball valve with virgin PTFE seats) and M16Si4 (ISO stainless steel ball valve with reinforced PTFE seats). The products fully comply with the European Pressure Equipment Directive (PED).
Sizes and Connections
-
RB: ½”, ¾”, 1”, 1¼”, 1½”, 2” BSP threaded and butt-weld connections, DN15 to DN50 PN16 flanges
-
FB: 3/8”, ½”, ¾”, 1”, 1¼”, 1½” BSP threaded and butt-weld connections, DN10 to DN40 PN16 flanges
Pressure/Temperature Limits
| Parameter | M16Vi4 | M16Si4 |
|---|---|---|
| PMA Maximum allowable pressure | 16 bar g @ 50 °C (232 psi g @ 122 °F) | 16 bar g @ 50 °C (232 psi g @ 122 °F) |
| TMA Maximum allowable temperature | 165 °C (329 °F) | 183 °C (361 °F) |
| Minimum allowable temperature | -10 °C (14 °F) | -10 °C (14 °F) |
| PMO Maximum saturated steam operating pressure | 6 bar g @ 165 °C (87 psi g @ 329 °F) | 9.9 bar g @ 183 °C (144 psi g @ 361 °F) |
| TMO Maximum operating temperature | 165 °C @ 6 bar g (329 °F @ 87 psi g) | 183 °C @ 9.9 bar g (361 °F @ 144 psi g) |
| Maximum design cold hydraulic test pressure | 24 bar g (348 psi g) | 24 bar g (348 psi g) |
Weight (Approximate) kg
| Size | RB (Threaded/PN16 flanged) | FB (Threaded/PN16 flanged) |
|---|---|---|
| 3/8” | - / - | 0.6 / 1.6 |
| ½” | 0.6 / 2.6 | 0.8 / 2.8 |
| ¾” | 0.8 / 2.8 | 1.3 / 3.3 |
| 1” | 1.3 / 3.3 | 1.8 / 3.8 |
| 1¼” | 1.8 / 5.8 | 2.8 / 6.8 |
| 1½” | 2.8 / 6.8 | 3.9 / 7.9 |
| 2” | 3.9 / 8.9 | - / - |
Materials
| No. | Component | Material |
|---|---|---|
| 1 | Valve body | Stainless steel EN 10213 1.4308 |
| 2 | Stem gasket | RPTFE |
| 3 | Stem | Stainless steel ASTM A276 304 |
| 4 | Stem seal | Graphite-reinforced PTFE |
| 5 | Spring washer | Stainless steel 60Si2MnA |
| 6 | Seat | M16Vi: Virgin PTFE; M16Si: Reinforced PTFE |
| 7 | Ball | Stainless steel ASTM A276 316L |
| 8 | Flange | Stainless steel ASTM A276 304 |
| 10 | Bolts/Nuts | Stainless steel BS EN ISO 3506 A2-70 |
| 12 | Stem nut | Stainless steel SUS 304 |
| 18 | Flange face gasket | PTFE |
Safety Information and Installation
-
Butt-weld versions are supplied as loose components. Weld both connection ends to the pipeline, allow the end caps to cool, and then assemble the valve body to the end caps to prevent high temperatures from damaging the valve seals.
-
Refer to the installation and maintenance guide supplied with the product for detailed information.
Ordering Information
Example: 1 Spirax Sarco M16Vi4 reduced-bore 1” butt-weld connection valve.
