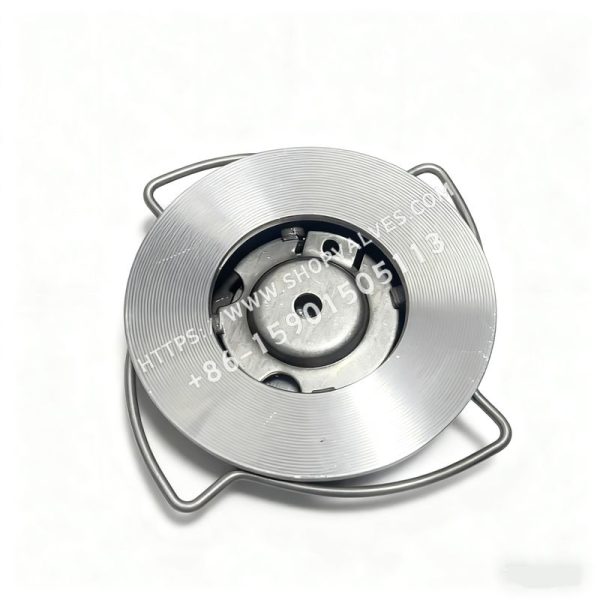

GESTRA RK76 is a high-performance wafer-type non-return check valve designed for industrial piping systems. It reliably prevents reverse flow of liquids, gases, and steam. The valve uses a lift-style disco design with a spring-assisted closing mechanism, supports installation in any position (horizontal or vertical), and uses a spiral centering ring for precise alignment. RK76 complies with the EU PED Pressure Equipment Directive and EN 558-1. With an extremely short face-to-face length (basic series 49), compact dimensions, and low weight, it is well suited for steam systems, chemical piping, and fluid transfer applications.

In hot-water circulation, condensate recovery, mineral oil transfer, and corrosive gas applications, GESTRA RK76 provides low opening pressures (2.5–18 mbar) and zero-leakage protection to support safe and stable system operation. Multiple seat material options (metal-to-metal, PTFE, EPDM, FPM) accommodate different media requirements. Pressure ratings include PN 6/10/16/25/40 and ASME CL 125/150/300.

Keywords: GESTRA RK76 check valve, wafer check valve, stainless steel check valve, wafer check valve, steam check valve, industrial non-return valve.

Key Features and Benefits

• Compact design: Face-to-face lengths of only 16–60 mm (depending on DN) make the valve suitable for clamped installation between flanges, saving space and reducing system weight.

• Flexible installation: The built-in stainless steel spring supports installation in any orientation. The springless version is suitable for vertically upward flow and adapts to complex piping layouts.

• Low opening pressure: Standard opening pressure is 2.5–6.5 mbar (springless) or 5–18 mbar (with spring). Special springs rated at 20–1000 mbar are also available to ensure reliable opening at minimum flow rates.

• Durable materials: The body is made from 1.4107 chromium steel (DIN/EN) or SA217 CA15 (ASME). The disc and spring are made from 1.4571 stainless steel, providing strong corrosion resistance for extreme environments from -190°C to 300°C.

• Zero-leakage protection: In accordance with DIN EN 12266, metal seats achieve Class D leakage rates, while soft seats (EPDM/FPM) achieve Class A, helping prevent equipment damage or efficiency losses caused by reverse flow.

• Customization options: Available options include silicone-free/grease-free versions, pickling and passivation treatment, orifice and bore designs, and ASME RF sealing strips for specific industrial requirements.

These features make GESTRA RK76 a reliable industrial solution with reduced maintenance requirements.

Technical Specifications

Pressure/Temperature Ratings

Standard	Pressure rating	Temperature range	Maximum pressure (barg) example
DIN/EN	PN 40	-10°C to 300°C	40.0 (-10°C) to 25.8 (300°C)
ASME	CL 300	-10°C to 300°C	49.6 (-10°C) to 31.6 (300°C)

Dimensions and Weight

Nominal size DN (mm)	Inches	Face-to-face length L (mm)	Flange diameter ∅ D (PN 6-40, mm)	Weight (kg)
15	½	16	45	0.18
20	¾	19	55	0.30
25	1	22	65	0.45
32	1¼	28	75	0.70
40	1½	31.5	85	0.90
50	2	40	98	1.50
65	2½	46	118	2.10
80	3	50	134	3.40
100	4	60	154	5.20

• Nominal size range: DN 15–100 mm (NPS ½–4).

• Connection standards: DIN EN 1092 B (PN 6/10/16/25/40), ASME B16.5 (CL 150/300 RF), BS 10 (Table D/E/F/H/J), JIS B2238 10K.

• Seat options:

Type	Temperature range	Leakage rate (DIN EN 12266)
Metal-to-metal	-10°C to 300°C	Class D
PTFE	-190°C to 250°C	Class D
EPDM	-40°C to 150°C	Class A
FPM	-25°C to 200°C	Class A

Materials

• Body/seat/guide: 1.4107 chromium steel (DIN/EN) / SA217 CA15 (ASME).

• Disc/spring retainer: 1.4571 stainless steel.

• Spring: Stainless steel.

• Spiral centering ring: 1.4310 chromium steel.

Applications

GESTRA RK76 is widely used in:

• Steam and condensate systems: Preventing reverse steam flow and protecting pumps and heat exchangers.

• Chemical and petroleum piping: Handling mineral oil, gases, and corrosive fluids for safe transfer.

• Industrial gas and air lines: Providing reliable closure at low differential pressure for compressed-air systems.

• Water treatment and HVAC: EPDM/PTFE seat options are suitable for water and neutral media.

Note: Not recommended for severe pulsating flow or high differential-pressure applications. For DN 65/80, selecting a smaller size is recommended to optimize performance.

Installation and Maintenance Guide

Installation Steps

• Confirm that the media flow direction matches the arrow on the valve body.

• Position the valve between two flanges. Use standard gaskets and long bolts, and tighten evenly in a diagonal sequence according to the flange standard torque requirements.

• Install only when system pressure is zero. The spring-loaded version can be installed in any orientation; the springless version is limited to vertically upward flow.

• Verify the minimum volumetric flow required to keep the disc open (see the data sheet for details).

Maintenance Recommendations

• Regular inspection: Clean the disc and seat every 6–12 months and check spring integrity.

• Troubleshooting:

Leakage: Remove foreign matter or replace the seat.

• Failure to open: Check spring pressure or media viscosity.

• Component replacement: The cover can be removed for convenient spring or disc replacement. Use original manufacturer parts to ensure compatibility.

Proper maintenance can extend RK76 service life to more than 10 years.
