Description

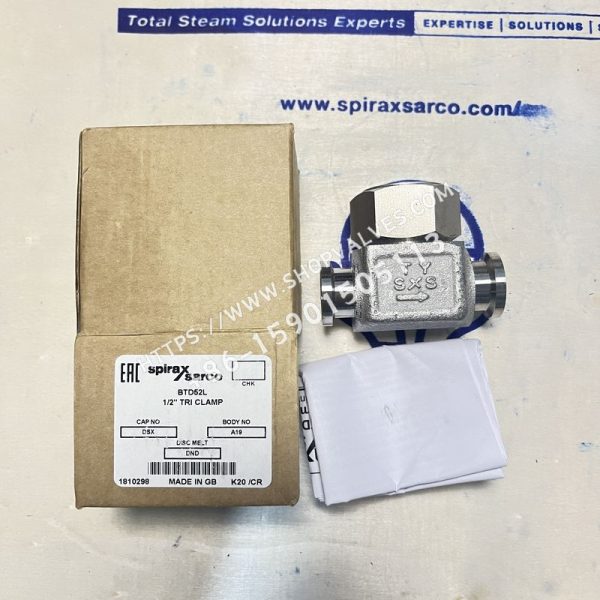

Spirax Sarco BTD52L thermodynamic steam trap, manufactured from 316L stainless steel, is suitable for steam main drainage in clean steam systems.
Standards and Certificates
This product fully complies with the European Pressure Equipment Directive 2014/68/EU. An EN 10204 3.1 certificate is available; please specify this requirement when ordering.
Sizes and Pipe Connections
-
¼”, 3/8”, and ½” BSP or NPT threaded connections.
-
½” outside diameter × 16 swg (0.065”) wall thickness tube-end connection.
-
DIN 11850(series1) tube ends: 12mm outside diameter × 1.0mm wall thickness (DN 10), 18mm outside diameter × 1.0mm wall thickness (DN 15).
-
ISO 1127(series1) tube ends: 17.2mm outside diameter × 1.6mm wall thickness (DN 10), 21.3mm outside diameter × 1.6mm wall thickness (DN 15).
-
½” sanitary clamp connection (DN15).
Options
An insulation cover protects the steam trap from excessive heat loss caused by wind, rain, low temperatures, and other severe weather conditions.
Pressure/Temperature Limits
| Item | Details |
|---|---|
| Body design conditions | PN16 |
| PMA maximum allowable pressure | 16 bar g @ 50 °C |
| TMA maximum allowable temperature | 450 °C @ 8 bar g |
| Minimum allowable temperature | 0 °C |
| PMO maximum operating pressure with saturated steam | 10 bar g @ 220 °C |
| TMO maximum operating temperature | 450 °C @ 8 bar g |
| Minimum operating temperature | 0 °C (for lower operating temperatures, consult Spirax Sarco) |
| PMOB | Maximum operating backpressure must not exceed 80% of the upstream pressure |
| Minimum operating differential pressure | 0.25 bar g |
| Design maximum cold hydraulic test pressure | 24 bar g |
Materials
| No. | Component | Material |
|---|---|---|
| 1 | Body | Austenitic stainless steel AISI 316L |
| 2 | Cap | Austenitic stainless steel AISI 316L |
| 3 | Disc | Austenitic stainless steel AISI 316L |
| 4 | Insulation cover (optional) | Aluminum |
Weight
| Size | Sanitary clamp/BSP or NPT | Tube end |
|---|---|---|
| All sizes | 0.45kg | 0.55kg |
Capacity
Capacity chart: (The original document includes a chart showing condensate quantities at different differential pressures.)
Safety Information, Installation, and Maintenance
For detailed information, refer to the installation and maintenance instructions (IM-P181-03) supplied with the product. Horizontal installation is recommended, with a length of downward-sloping pipe upstream of the steam trap. In applications subject to freezing or where horizontal installation is not possible, BTD52L can also be installed vertically, although this may affect its service life. Isolation valves should be installed upstream and downstream of the steam trap to facilitate maintenance and replacement. If the steam trap discharges into a closed condensate recovery system, a check valve should be installed downstream to prevent reverse flow.
Disposal
This product is recyclable and, when disposed of properly, does not present an environmental hazard.
How to Order
Example: 1 - Spirax Sarco BTD52L thermodynamic steam trap, 316L stainless steel body, tube-end connection with 17.2mm outside diameter × 1.6mm wall thickness (ISO 1127, series 1).
Spare Parts
Available spare parts: disc, insulation cover.
When ordering spare parts, specify the required part together with the steam trap model and size as described above. Example: 1 - disc assembly for Spirax Sarco BTD52L ½” BSP thermodynamic steam trap.
