Description
Spirax Sarco DM-series solenoid valves are designed for pneumatic piston angle valves. These 3/2-way electro-pneumatic pilot solenoid valves can be mounted directly using a banjo-style connection on PF51G, PF61G-NC, PF61G-NO, and BD series pneumatic piston angle valves. Air or water can be used as the operating medium. The solenoid valves are equipped with DIN connectors and include a manual override as standard.
Available Models

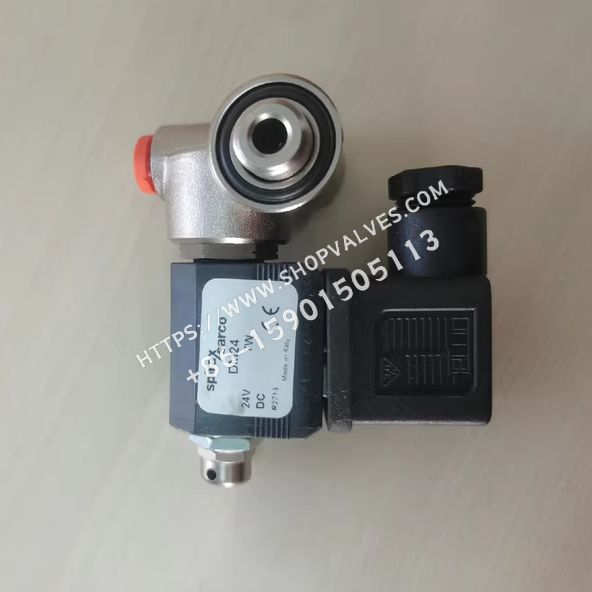

| Model | Actuator | Voltage / Frequency | Connection |
|---|---|---|---|
| DM11 | 45 mm | 230/50 or 240/60 Vac | 1 / 8 ” BSP |
| DM12 | 45 mm | 110/50 or 120/60 Vac | 1 / 8 ” BSP |
| DM13 | 45 mm | 24/50 or 24/60 Vac | 1 / 8 ” BSP |
| DM14 | 45 mm | 24 Vdc | 1 / 8 ” BSP |
| DM21 | 63 mm | 230/50 or 240/60 Vac | ¼” BSP |
| DM22 | 63 mm | 110/50 or 120/60 Vac | ¼” BSP |
| DM23 | 63 mm | 24/50 or 24/60 Vac | ¼” BSP |
| DM24 | 63 mm | 24 Vdc | ¼” BSP |
| DM31 | 90 mm | 230/50 or 240/60 Vac | ¼” BSP |
| DM32 | 90 mm | 110/50 or 120/60 Vac | ¼” BSP |
| DM33 | 90 mm | 24/50 or 24/60 Vac | ¼” BSP |
| DM34 | 90 mm | 24 Vdc | ¼” BSP |
Technical Data
| Installation | Banjo-style |
|---|---|
| Manual override | Supplied as standard |
| DIN connector | Type B: DM11, DM12, DM13 and DM14; Type B: DM21, DM22, DM23 and DM24; Type A: DM31, DM32, DM33 and DM34 |
| Pilot medium connection | DM11-DM14, DM21-DM24, DM31-DM34: 6 mm diameter nylon or copper tubing |
| Power consumption | DM11, DM12, DM13 and DM14: ac 10 VA (continuous), ac 16 VA (maximum), dc 7 W; DM21, DM22, DM23 and DM24, DM31, DM32, DM33 and DM34: ac 10 VA (continuous), ac 16 VA (maximum), dc 7 W, ac 18 VA (continuous), ac 36 VA (maximum), dc 14 W |
Limitations
| Maximum medium temperature | 60 ℃ |
|---|---|
| Minimum medium temperature | -10 ℃ |
| Protection rating | IP65 (with connector) |
| Operating pressure | 0-10 bar g |
Materials
| Component | Material |
|---|---|
| Body | ELNP |
| Seat | FKM |
Spare Parts
No spare parts are available for this product.
Weight
| Model | Weight |
|---|---|
| DM11, DM12, DM13 and DM14 | 0.27kg |
| DM21, DM22, DM23 and DM24 | 0.27kg |
| DM31, DM32, DM33 and DM34 | 0.38kg |
Installation
The solenoid valve is mounted directly onto the actuator using a banjo-style connection.
Ordering Information
Example: 1-DM21 solenoid valve, 240Vac.
The applications and operating conditions listed in this technical information may be restricted by strict local regulations. As products are continually developed and updated, the right is reserved to update this technical information.
