Description
Spirax Sarco TD42L and TD42H thermodynamic steam traps are serviceable steam traps. TD42L has a relatively low rated condensate capacity and is primarily used for main line drainage; TD42H is designed for process load drainage. For applications requiring air removal, TD42LA and TD42HA models with anti-air-lock discs are available. The external surfaces of the trap bodies feature ENP nickel plating for energy efficiency and oxidation resistance.
Sizes and Pipe Connections
-
TD42L: 3/8”, ½”, ¾” and 1” threaded BSP or NPT connections
-
TD42H: ½”, ¾” and 1” threaded BSP or NPT connections
-
TD42LA: 3/8”, ½”, ¾” and 1” threaded BSP or NPT connections
-
TD42HA: ½” and ¾” threaded BSP or NPT connections
Optional Accessories
-
Insulating cover: Helps prevent excessive heat loss and overly frequent operation caused by exposure to low temperatures, wind or rain.
-
Integrated blowdown valve: The strainer cap can be drilled and tapped for a 3/8” BSP or NPT blowdown valve, such as BDV1 or BDV2.
Limitations (ISO 6552)
-
Maximum body design conditions: PN 63
-
PMA maximum allowable pressure: 63 bar g@100℃
-
TMA maximum allowable temperature: 400℃@42 bar g
-
Minimum allowable temperature: Not specified in the available documentation
-
PMO maximum operating pressure: 42 bar g
-
TMO maximum operating temperature: TD42L & TD42H: 400℃@42 bar g; TD42LA & TD42HA: 255℃@42 bar g
-
PMOB maximum operating backpressure: 80% of upstream pressure; otherwise, the valve cannot close
-
Minimum inlet pressure for normal operation: TD42L & TD42H: 0.25 bar; TD42LA & TD42HA: 0.80 bar
-
Maximum cold hydraulic test pressure: 95 bar g

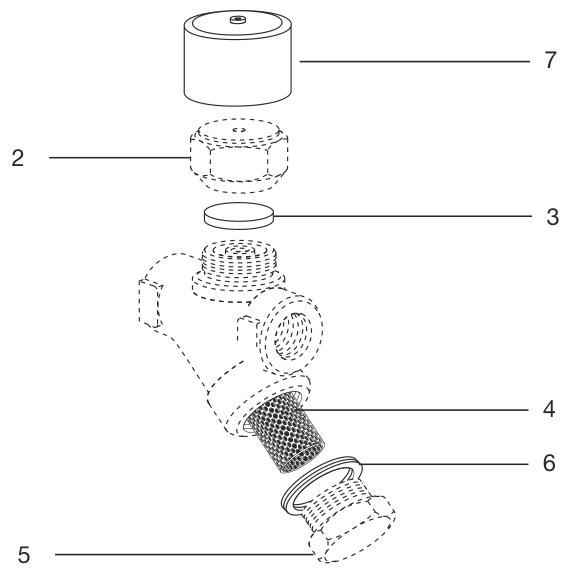

Materials
| No. | Component | Material |
|---|---|---|
| 1 | Body | Stainless steel (ENP surface treatment) ASTM A743 Gr.CA 40F, BS 1449 420 S45, BS 1449 304 S16, AISI 416 |
| 2 | Cap | Stainless steel |
| 3 | Strainer screen | Stainless steel |
| 4 | Strainer cap | Stainless steel |
| 5 | Strainer cap gasket | Stainless steel |
| 6 | Disc | Stainless steel |
| 7 | Insulating cover (optional) | Aluminum |
Weight
| Size | Weight (kg) |
|---|---|
| 3 / 8”L | 0.80 |
| ½”L | 0.75 |
| ¾”L | 0.95 |
| 1”L | 1.50 |
| ½”H | 0.80 |
| ¾”H | 1.00 |
| 1”H | 1.50 |
Certificates
Standard test certificates are available for this product and must be requested when ordering.
Safety Information, Installation and Maintenance
For detailed information, refer to the installation and maintenance instructions supplied with the product (IM-068-024). The steam trap should preferably be installed in a horizontal pipe with a short downward-sloping pipe section upstream.
Disposal
This product is recyclable and, when disposed of properly, does not create an environmental hazard.
Ordering Information
Example: 1 - Spirax Sarco ½” TD42L thermodynamic steam trap, BSP threaded connection.
