Description

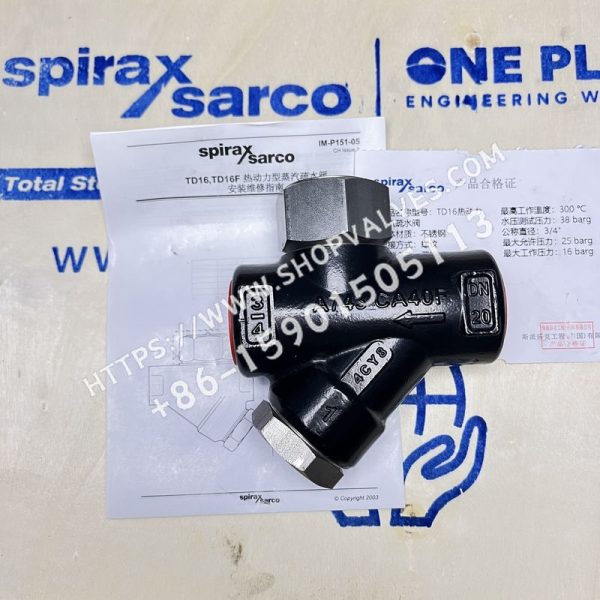

Spirax Sarco TD16 and TD16F thermodynamic steam traps. TD16 is designed for low-capacity steam mains and tracing lines, and for other applications where pressure, temperature, and flow rate are within the specified limits. Maximum operating pressure is 16 bar g.
Available Models
| Model | SKU |
|---|---|
| 1/2” TD16 | 1510015000 |
| 3/4” TD16 | 1510020000 |
| 1” TD16 | 1510025000 |
Operating Limits
| Maximum body design condition | PN 25 |
|---|---|
| PMA - Maximum allowable pressure | 25 bar g |
| TMA - Maximum allowable temperature | 300 ℃ |
| PMO - Maximum operating pressure | 16 bar g |
| TMO - Maximum operating temperature | 300 ℃ |
| Maximum cold hydraulic test pressure | 38 bar g |
Note: Under operating conditions, maximum operating backpressure must not exceed 80% of the inlet pressure; otherwise, the steam trap will not close.
Sizes and Pipe Connections
-
TD16: 1/2”, 3/4”, and 1”, with BSP (BS21) or NPT threaded connections
Materials
| No. | Component | Material |
|---|---|---|
| 1 | Body | Stainless steel ASTM A743.Gr.CA40F |
| 2 | Cover | Stainless steel AISI 416 |
| 3 | Disc | Stainless steel BS 1449 420 S45 |
| 4 | Strainer screen | Stainless steel BS 1449 304 S16 |
| 5 | Strainer cover | Stainless steel AISI 416 |
| 6 | Strainer cover gasket | Stainless steel BS 1449 304 S16 |
| 7 | Insulation cap (optional) | Aluminum |
| 8 | Flange | Carbon steel |
Dimensions (Approximate) and Weight
| Size | Weight |
|---|---|
| 1/2” | 0.75kg |
| 3/4” | 0.95kg |
| 1” | 1.50kg |
| DN15 | 1.95kg |
| DN20 | 2.65kg |
| DN25 | 3.90kg |
Options
-
Insulation cap: The insulation cap prevents excessive heat loss from the steam trap in low-temperature, windy, or rainy environments, helping prevent excessively frequent operation.
-
Integral blowdown valve: Refer to TI - P153 - 01. A 1/4” BSP threaded hole can be drilled in the strainer cover to install a blowdown valve.
Installation
Horizontal installation is preferred, although the steam trap can be installed in other positions.
Ordering Information
Example: 1 - Spirax Sarco TD16 thermodynamic steam trap, 1/2” BSP threaded connection.
Ordering Spare Parts
Order spare parts according to the descriptions in the spare parts list, specifying the steam trap model and size. Example: strainer screen and gasket for a 1/2” TD16 thermodynamic steam trap.
Maintenance
-
Before carrying out any maintenance, ensure that the isolation valves upstream and downstream of the steam trap are closed, the pipeline is depressurized, and the steam trap has cooled to room temperature.
-
Disc and seat maintenance: If an insulation cap is fitted, remove it first. Then loosen the cover with a standard wrench. Do not use an adjustable wrench or pipe wrench, as this may damage the cover. If the disc and seat surfaces are only slightly worn, use lapping compound and lap the disc and seat separately using a figure-eight motion. If the wear is too severe to be corrected by lapping, machine and polish the seat surface and replace the disc. Lapping must not remove more than 0.25mm. During reassembly, position the disc with its grooved side in contact with the seat surface. Tighten the cover without a gasket, applying a suitable high-temperature anti-seize grease.
-
Cleaning or replacing the strainer screen: Loosen the strainer cover with a wrench, remove the screen, and clean it. Replace the screen if it is damaged. During reassembly, insert the screen into the cover and screw the cover into the valve. Apply a small amount of molybdenum disulfide lubricant to the leading threads, ensure that the gasket surfaces are clean, and tighten the strainer cover to the recommended torque.
